Visual highlight with convincing technology

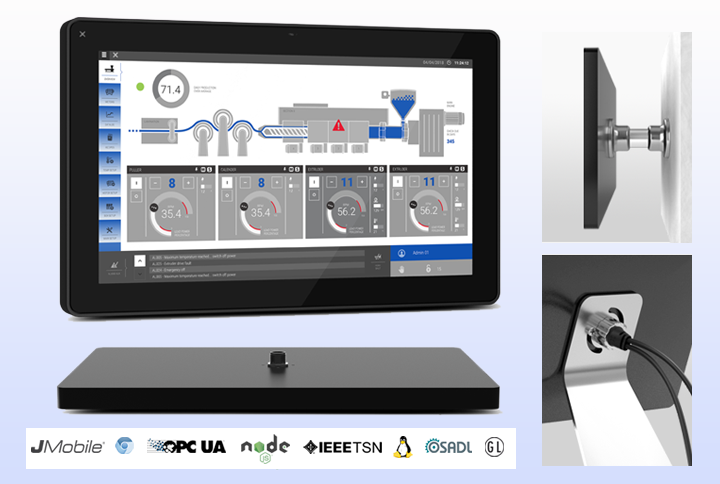

Where progressive digitization and the complex task of IIoT demand smart solutions, there are increasing requirements for the human-machine communication. With the modern touch panels of the KN-C 700 Plug & Play series you are getting a powerful tool together with an appealing design.

A robust 3.2 mm glass front with capacitive multi-touch and a fast CPU up to i.MX6S ARM Cortex-A9 Quad Core ensure active interaction with the system. The new OPC UA with TSN technology enables the development of a new generation of applications down to the field level. Integrated sensors providing data in real time making it a true IIoT edge device for industry 4.0 applications.

The elegant and slim design with a housing depth of 16.5 mm and IP67 (with appropriate connection all around) provide flexible application options. A single drill hole Ø 22 mm is sufficient – this reduces the assembly effort to a minimum and allowing as far as possible variable positioning.

Power supply and data transfer takes place with only one RJ45 connection cable via Power-over-Ethernet network technology.

> You can get more information from your local contact person
